module description
1 module S8550 driver transistor
2 Operating voltage 3.3V-5V
3 a fixed bolt hole for easy installation
4 small PCB board size: 3.2cm * 1.3cm
5 When the I / O port input low, buzzer vocalization
Second module interface specification (3-wire)
1 VCC 3.3V-5V external voltage (can be connected directly to the 5v and 3.3v MCU MCU)
2 GND External GND
3 I / O external microcontroller IO port

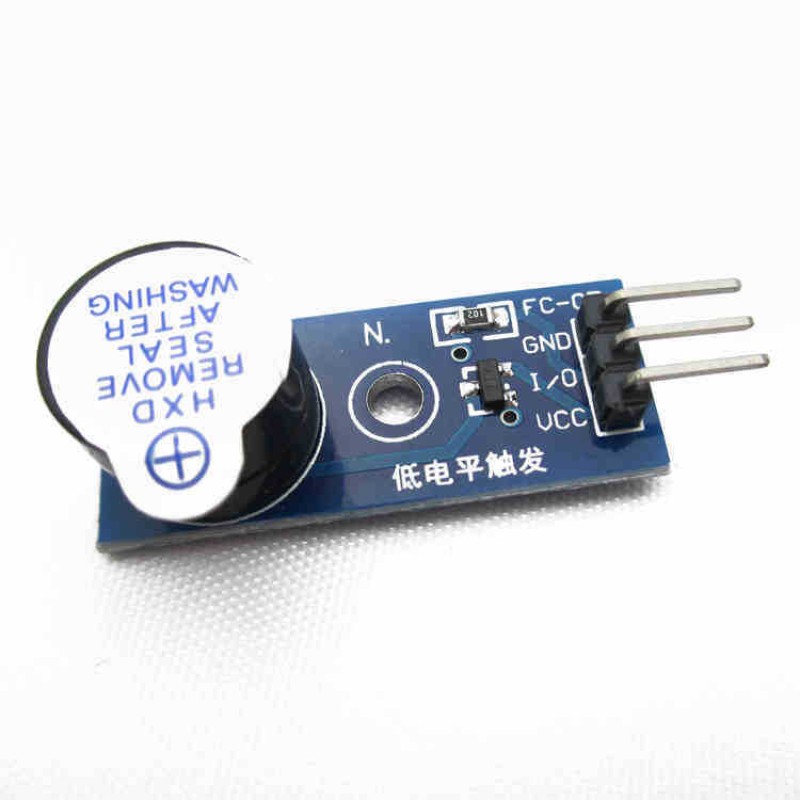

Buzzer Module 3.3-5V
- รหัสสินค้า: Buzzer Module 3.3-5V
- สินค้าในสต็อก: 15
-
50.00 บาท
